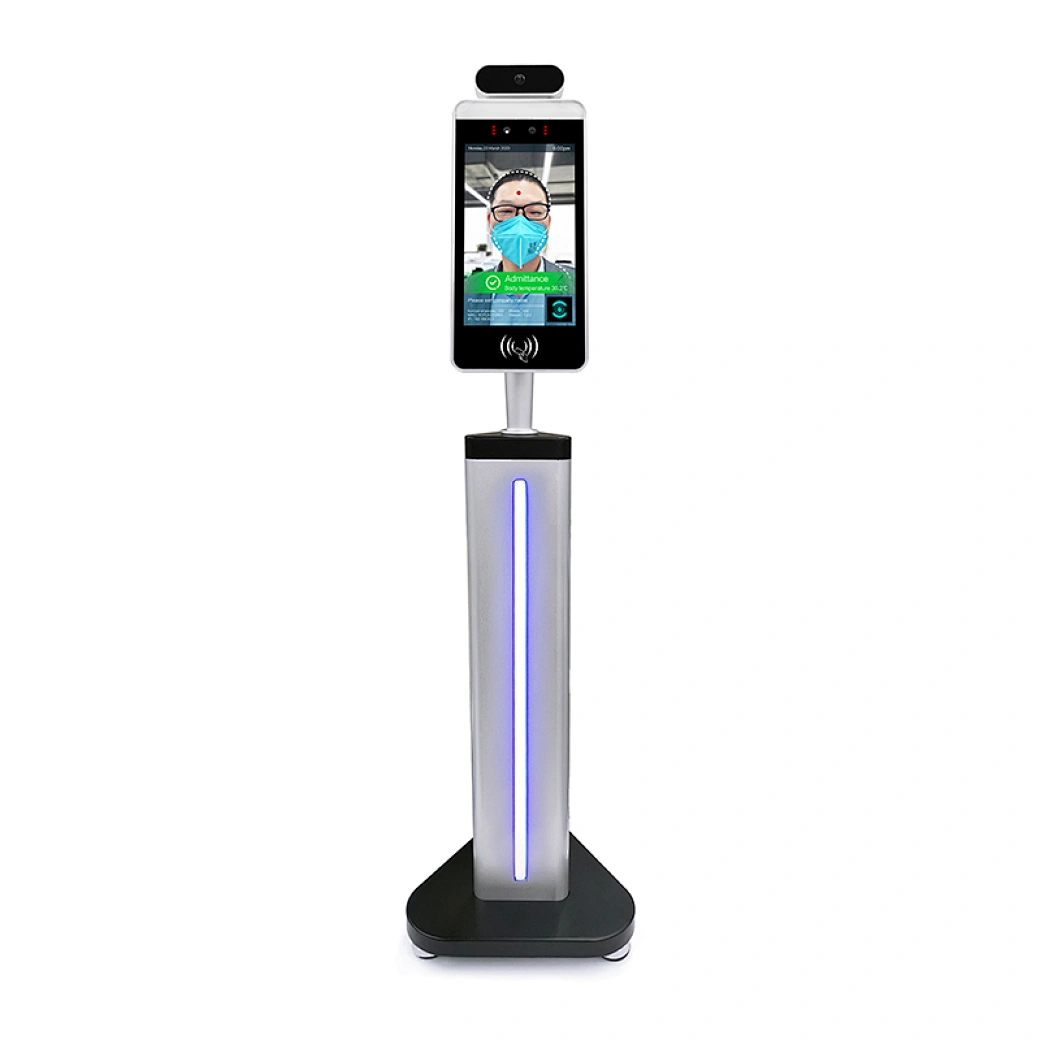

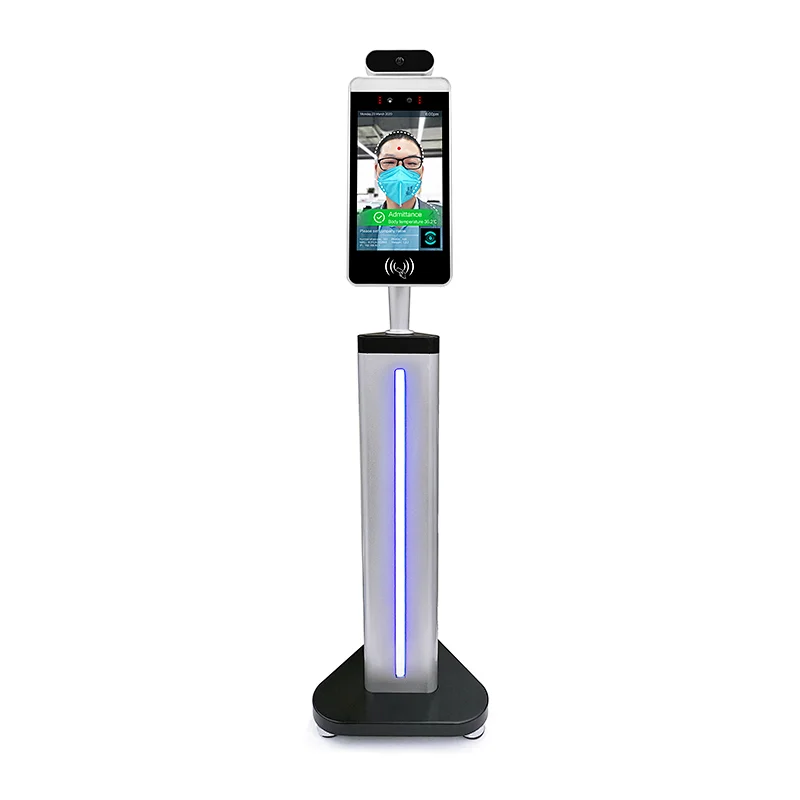

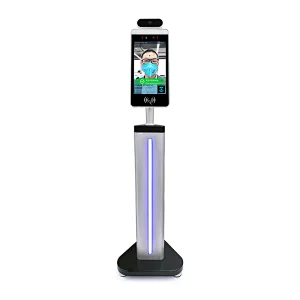

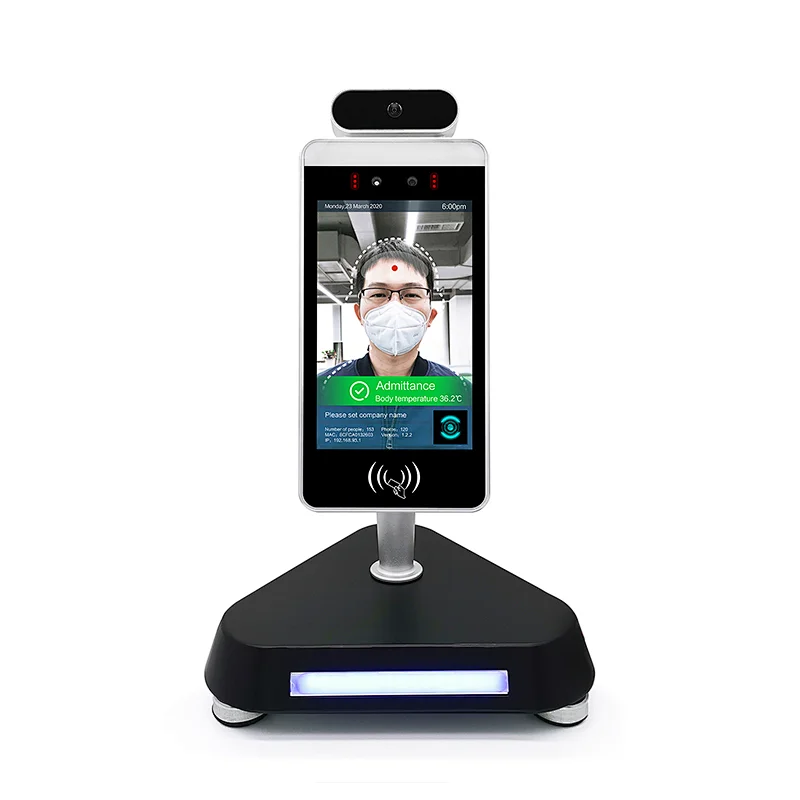

Smart Thermal Imaging Display Temperature Scanner Kiosk-DW1081-1

Smart Thermal Imaging Display Temperature Scanner Kiosk-DW1081-1

Model NO.: DW1081-1
Delivery:: FOB

Quantity:

Product Description

Type:TFT
Application:Indoor
Warranty:1 YEAR
After-sales Service Provided:Online support
Place of Origin:CN;GUA
Brand Name:HBONY
Model Number:DW1081-1
Color:Black
Application:Public Place
Function:Image Temperature Kiosk
Display:LCD Digital Display
Measuring distance:50-150cm
Certificate:CE ROHS

Face Recognizing Kiosk

Product Description

Parameters

Camera	Resolution	2 million pixels
	Camera Type	binocular wide dynamic camera
	Aperture	F2.4
	Focusing distance	50-150cm
	White Balance	Auto
	Photo flood light	LED and infrared double flood light
Screen	Screen size	8.0"IPS LCD Screen
	Resolution	800 × 1280
	Touch	optional support
Processor	CPU	RK3288 quad core (optional rk3399 six core, msm8953 eight core)
Processor	Storage	EMMC 8G
Interface	Network module	Supports Ethernet, wireless (WiFi)
	Audio	support 2.5W/4R
	USB	1 USB OTG, 1 USB host standard A port
	Serial communication	1 RS232 serial port
	Relay output	1 door opening signal output
	Wigan interface	1 Wigan 26 / 34 output,1 Wigan 26 / 34 input
	Wired Network	1 RJ45 Ethernet socket
	Upgrade button	supports the uboot upgrade
Function	Card reader	optional IC card reader/ID card
	Face recognition	support detection and tracking of multiple people at the same time
	Face Library	UP to 30,000
	1:N face recognition	Support
	1:1 face comparison	Support
	Stranger detection	Support
	Identify distance configuration	Support
	UI interface configuration	Support
	Upgrade remotely	Support
	Interface	Interfaces include device management, personnel / photo management, record query, etc.
	Deployment method	Support public cloud deployment, privatized deployment, LAN use, stand-alone use
Infrared thermal imaging module	Body temperature detection	support
	Temperature detection distance	1m (the best distance is 0.5m)
	Temperature measurement accuracy	≤± 0.5 ^oC
	Temperature measurement range	10^oC ~ 42 ^oC
	Visitors model	support for normal temperature of visitors
	Temperature alarm	support

Main Features:
1. 8-inch IPS full-view LCD display.
2. Industrial-class appearance, waterproof and dustproof design which is stable and reliable.
3. Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1:N comparison recognition rate is more than 96.7%~0.1% misrecognition rate, and the live detection
accuracy rate is 98.3%~1% misrejection rate. Face recognition pass speed is less than 1 second.
4. Supports accurate face recognition and comparison while wearing a mask.
5. Using industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp.
6. Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399 six-core processor and Qualcomm MSM8953 octa-core processor.
7. Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5 ℃.
8. It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
9. Attendance temperature measurement data is exported in real time.
10. Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code reader, etc.

Care and Maintenance:

1. During the installation and use of the product, all electrical safety regulations must be strictly observed.

2. Please use the power adapter provided by the regular manufacturer.For specific requirements of the power adapter, see the product parameter table.

3. When installing on the gate, please make sure that the product is installed firmly.

4. If the product does not work properly, please contact the after-sales service personnel. Do not disassemble or modify the product in any way. (The company does not assume any responsibility for problems caused by unauthorized modification or repair.

5. Do not immerse the product in water. When the product is installed outdoors, try to use it with the rain cover provided by our company.

6. Please understand that you are responsible for properly configuring all passwords and other related product security settings, and keeping your user name and password properly.

7. If the equipment does not work properly, please do not disassemble it for repair, otherwise it will affect the equipment warranty.

8. Avoid extreme or extreme environments such as extreme high temperature (or low temperature), high humidity, vibration, radiation, and chemical corrosion during installation and use.
