Advertisement Player Kiosk Smart Screen Video Display Advertising And Displays Outdoor Digital Signage
- Certificate:CE/CCC/FCC/ROHS
- Installation:Floor Standing or Wall Mounted
- OSD language:Chinese/English

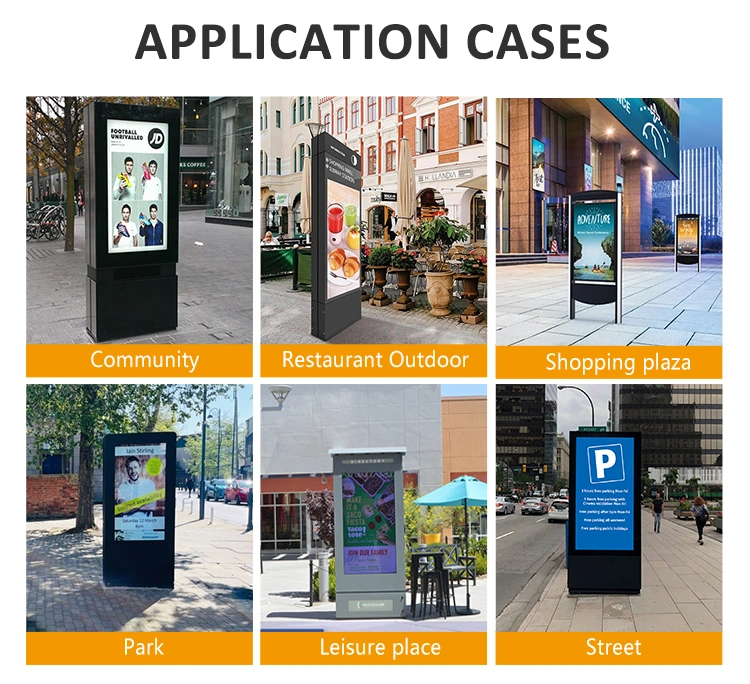

- Application:Shop, supermarket,Parking Signs
- Touch screen:Option Multi Touchscreen 10 Points
- Waterproof Level:IP65
- Heat Dissipation:industrial air conditioner
- Application:Outdoor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Type:TFT-LCD
- Viewing Angle:178(H)/178(V)
- Brightness:1500-2000cd/m2
- Contrast Ratio:3500:1
- Response Time:6ms
- Place of Origin:CN;GUA
- Brand Name:OEM ODM accepted
- Input Voltage:AC220V
- Model Number:Floor Stand Air Conditional Type
1.Product Structure
♦The shell is made of 1.5mm SGCC galvanized steel plate, sprayed with Akzo outdoor special plastic powder, and the protection period is more than 10 years.

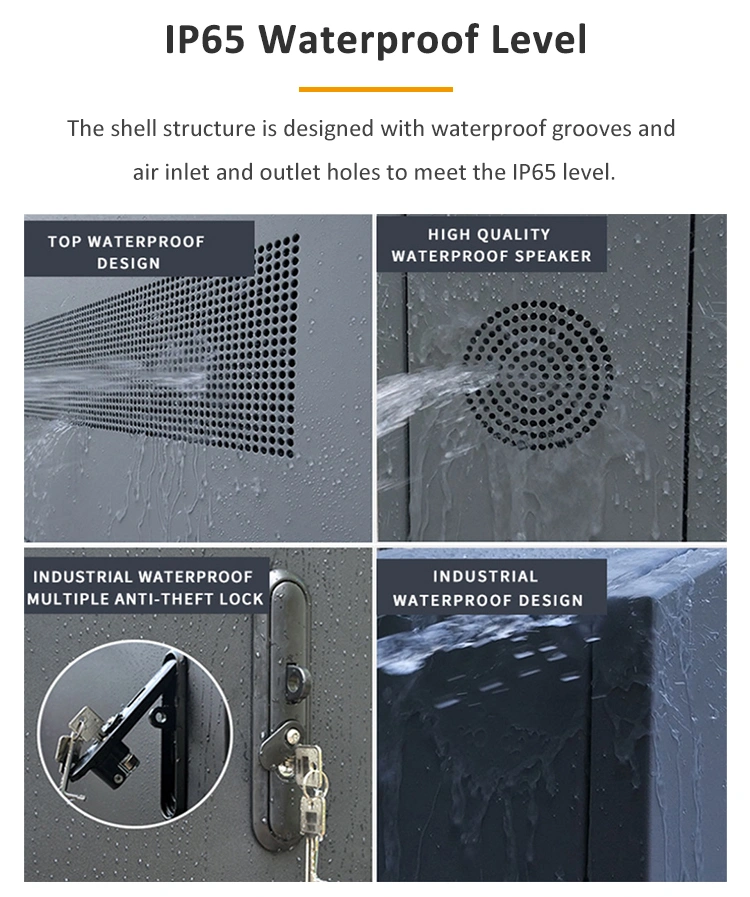

♦The housing structure is designed with waterproof grooves and air inlets and outlets to meet the IP65 protection level.

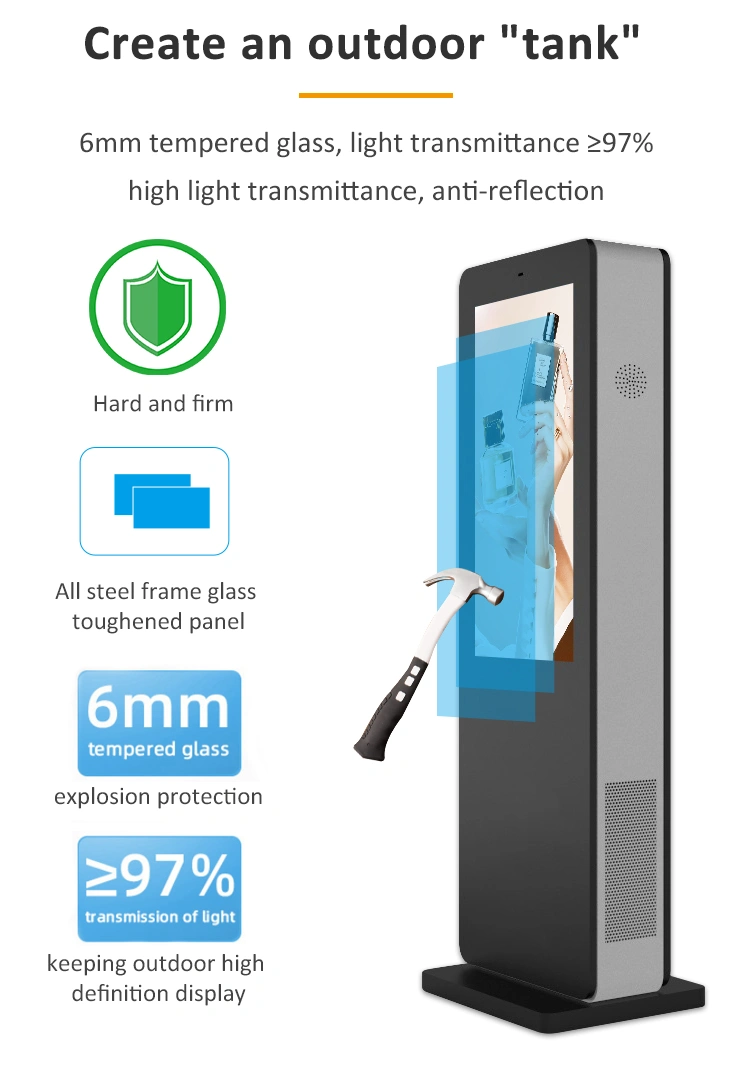

♦The protective glass in front of the screen of the whole machine adopts 6mm toughened glass, with light transmittance ≥97%, high light transmittance and anti-reflection.
♦The whole machine adopts the front and rear door opening method, which can facilitate the maintenance of the internal display screen, heat dissipation components and electronic parts.
♦The whole machine adopts modular design, which is convenient for installation and maintenance.
♦The bottom plate of the whole machine is designed with mounting holes, which can be fixed by tension bolts or pre-embedded threaded rods.

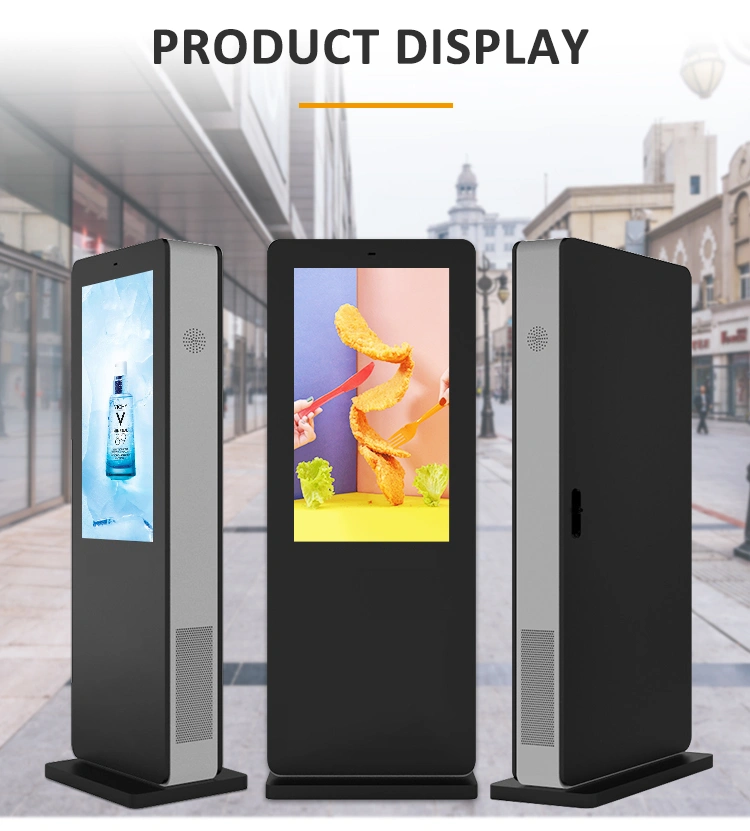

2.Product Display
♦Adopt high-brightness LCD display, the brightness can reach 1500-2000cd/m2.
♦High resolution, high contrast, high brightness, greatly improve the sense of layering of the picture, and can better express the details.
♦It has the function of automatically eliminating residual image, anti-ultraviolet, heat insulation to sunlight, automatic light perception and green energy saving to protect the long-term use of LCD screen.
♦It has the function of black level extension and self-adaptation, which enhances the sense of depth of the image.
♦The outdoor professional high-brightness LCD screen is used to make the video image more beautiful and the 3D feeling is stronger.
3.Heat Disspation

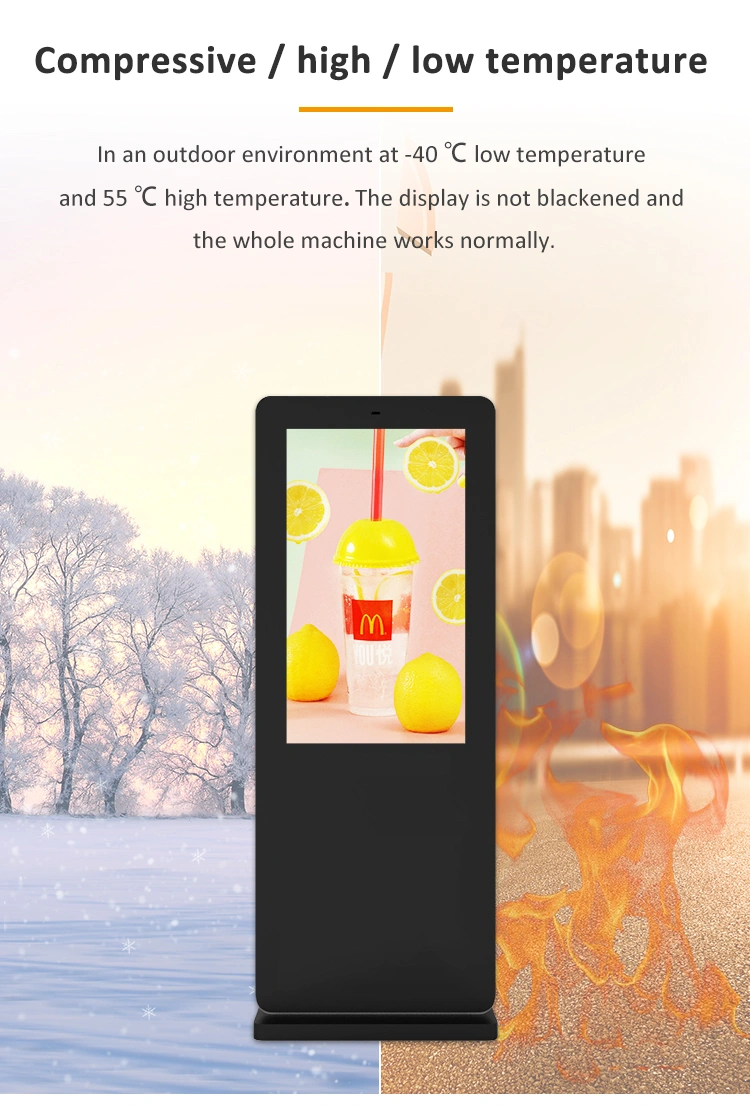

♦Adopt intelligent cooling and heating industrial air conditioner to control the temperature, meeting the normal operation of the whole machine in the outdoor environment of -40 to +55 degrees
♦Professional customized research and development of industrial air conditioners, fully matching the power consumption of the whole machine.
♦Automatic temperature sensing system to ensure that the internal temperature is within the range of 0-40 degrees.
Basic Parameter:

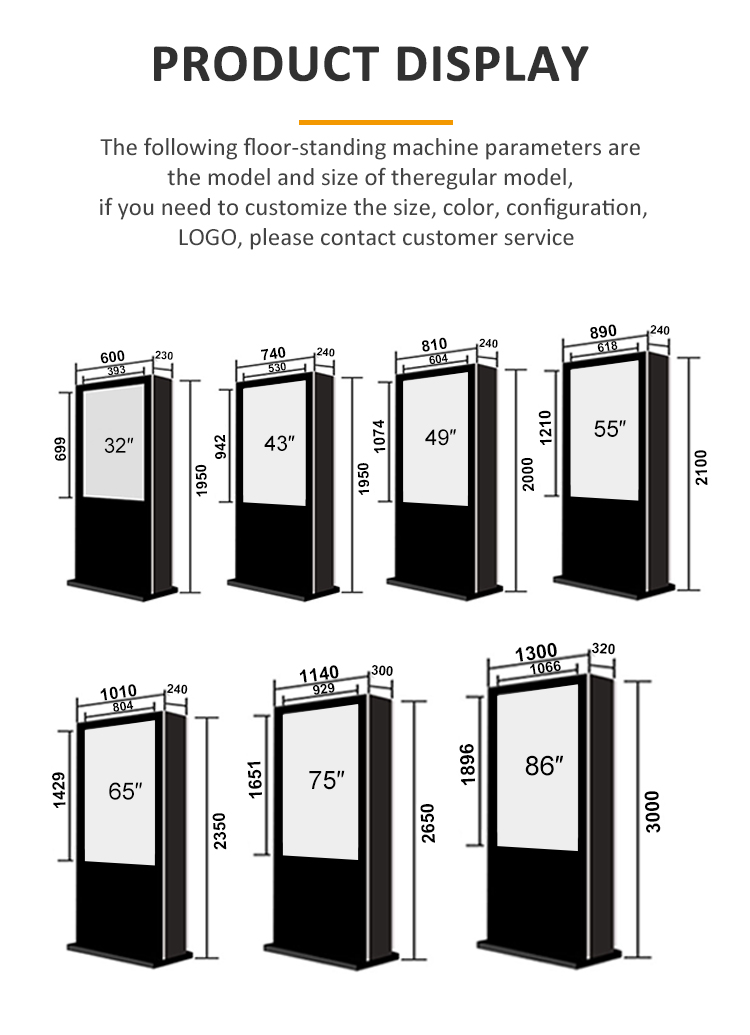

Panel Size | 32'' 43'' 49'' 55' 65'' 75'' 86'' | |
Parameter | Resolution | 1920*1080 |
| View angle | 178°H/178°V | |
| Color | 16.7M | |
| brightness | 1500-2000cd/m2 | |
| Life(hrs) | >50,000(hrs) | |
| Response time | 6ms | |
| Picture Format | GIF,JPEG,PNG,BMP | |
| Audio Format | MP3,24bit linear PCM7.1 | |
| Video Format | MPG,MPG-1,MPG-2,MPG-4,AVI,MP4, TS,MKV,WMV | |
| Speaker | Built-in high quality stereo sepaker2×10W (8Ω) | |
| Storage | 8G and it can be expanded to 32G | |
| Power Supply | AC220V | |
| Funchtion | Display | Horizontal screen / vertical screen, full screen / arbitrary split screen |
| Network | RJ45 interface, Wifi, 4G (optional) | |

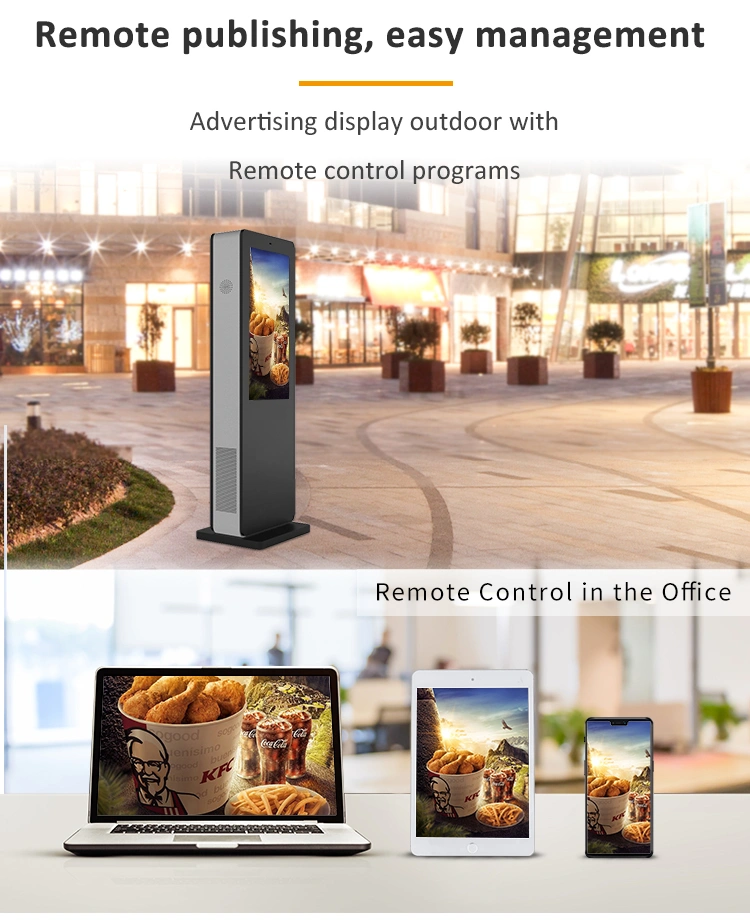

| Program upgrade | Remote upgrade, remote control upgrade | |
| Time switch machine | Supports any time period | |
| Protection Level | IP65 | |
| Working Environment | Working Temperature | -40°C~55°C |
| Storage Temperature | -10°C~60°C | |
| Other | Shell Color | Black,White,Red,Blue,Grey or customized color |
| Material | Metal case+aluminum alloy frame+tempered glass | |
| Installation | Wall mounted and free standing | |
| Solution | USB, Android and windows optional | |
