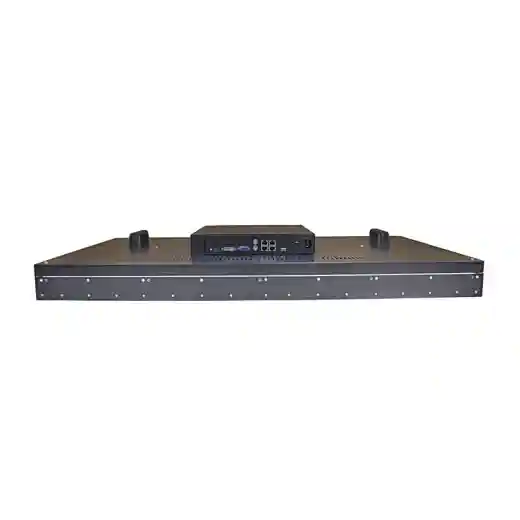

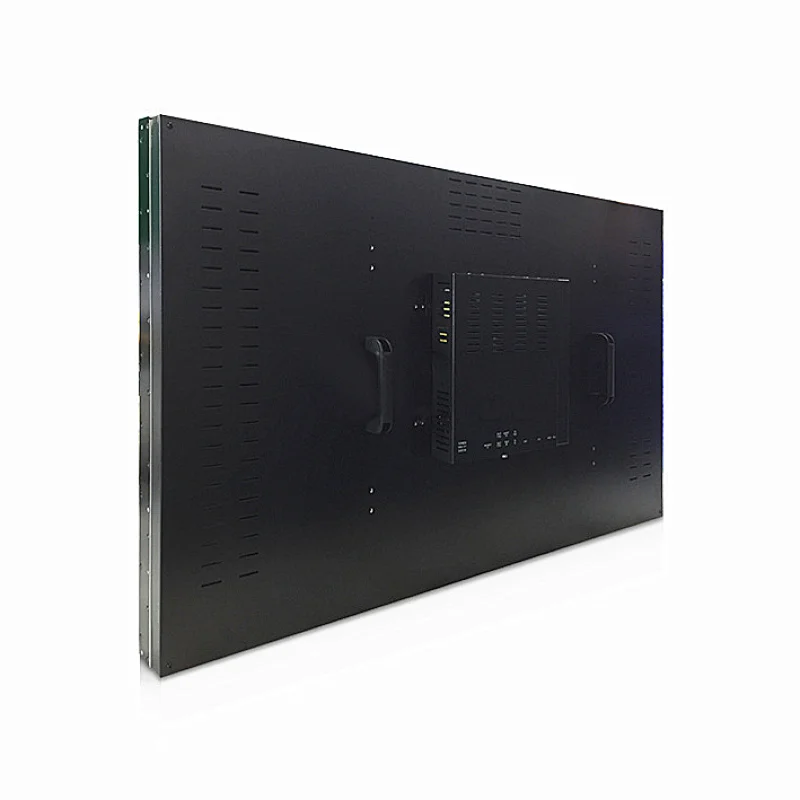

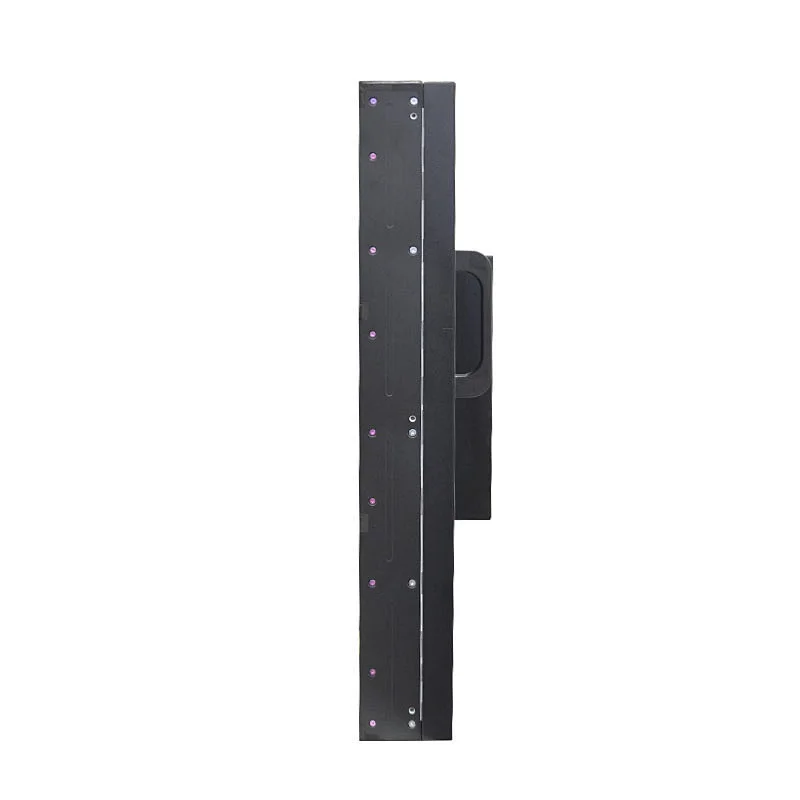

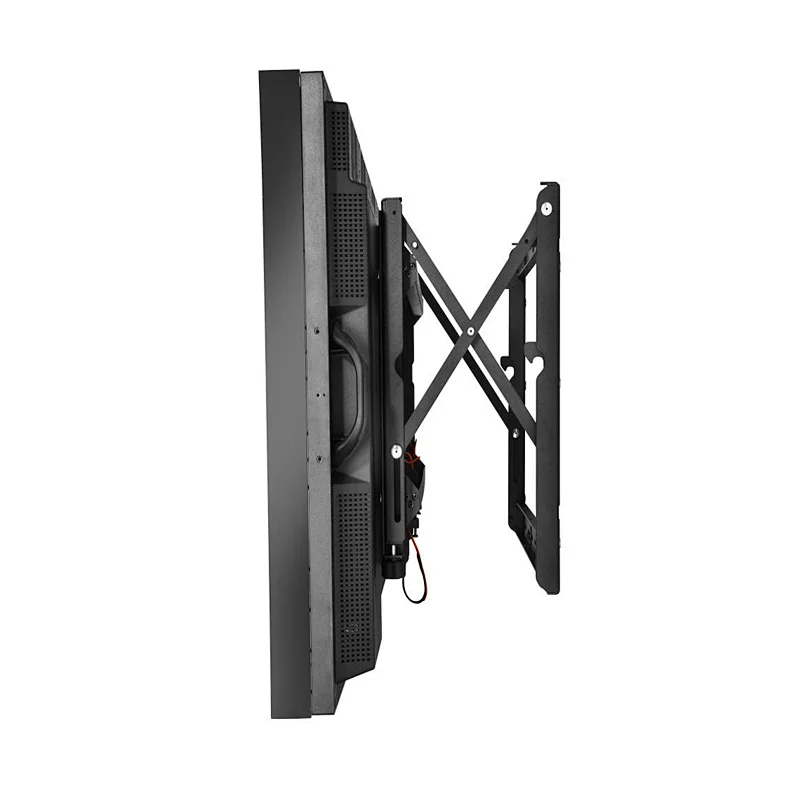

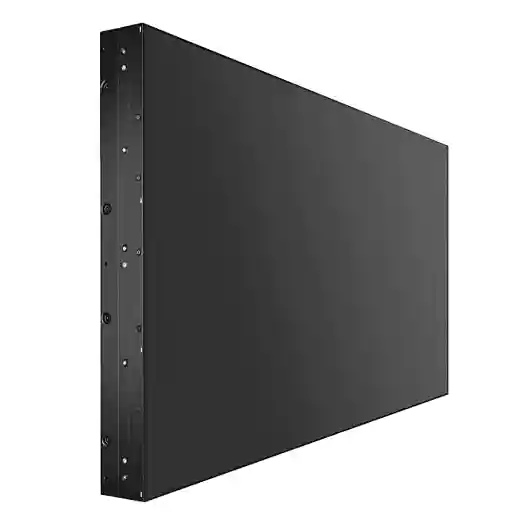

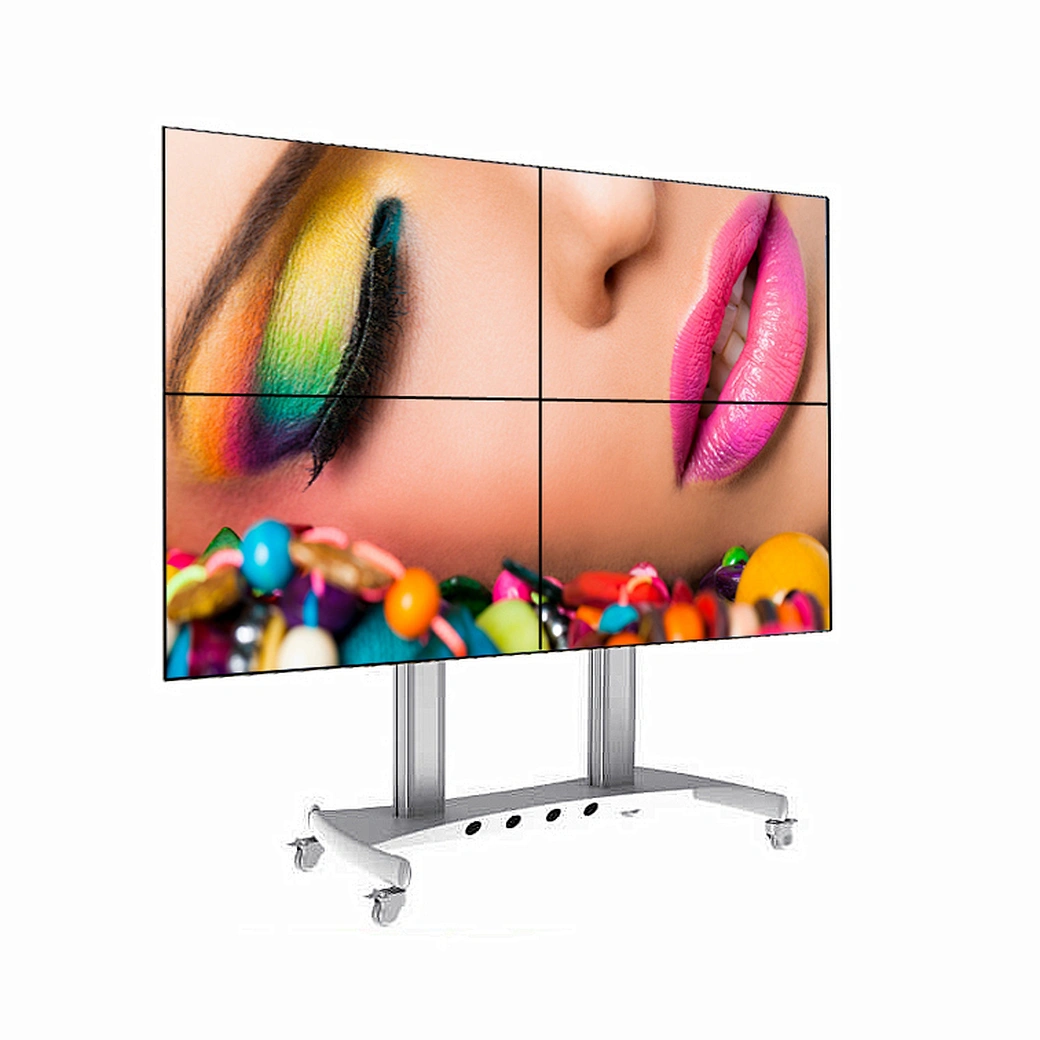

55 inch UNB HBY-PJ550P 1x3 2x2 3x2 Floor Stand With Wheels LCD Video Wall

Specification of LCD Video Wall

Size

46 inch

49inch

55inch

Panel Size

46"LCD module Screen

49"LCD module Screen

55"LCD module Screen

Backlight Type

LED

Display Area

1018.08(H)x572.67(v)mm

1073.8(H)*604.0(V)mm

1209.6(H)*680.4(V)mm

Aspect Ratio

16:9

Max Resolution

1920X1080

Color

8Bit,16.7M

Brightness (nits)

500cd/m2,700cd/m2

450cd/m2

500cd/m2,700cd/m2

Contrast

3500:1

4000:1

4500:1

Visual Angle (H/V)

178°/178°

Response Time

8 ms

Life Span

>60,000 hours

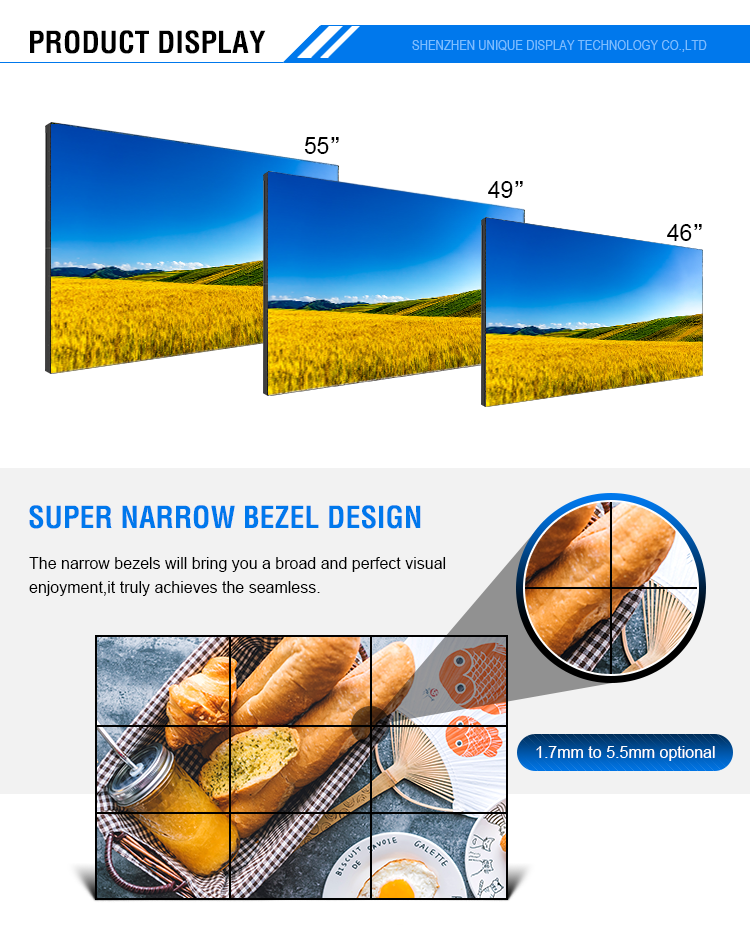

Bezel width

(between screens)

3.5mm/5.5mm

1.8mm/3.5mm

1.7mm/1.8mm/3.5mm

Product Weight

20KG

28KG

30KG

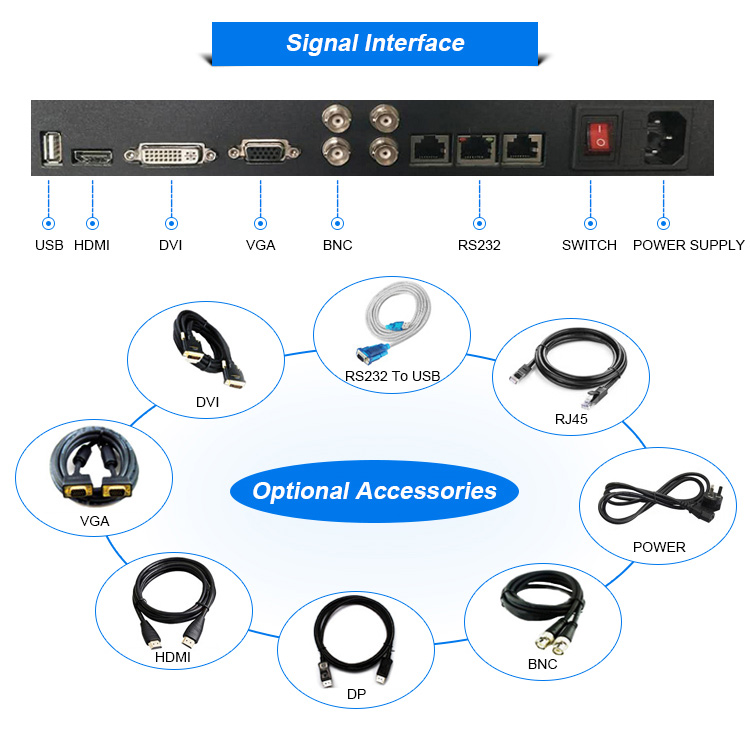

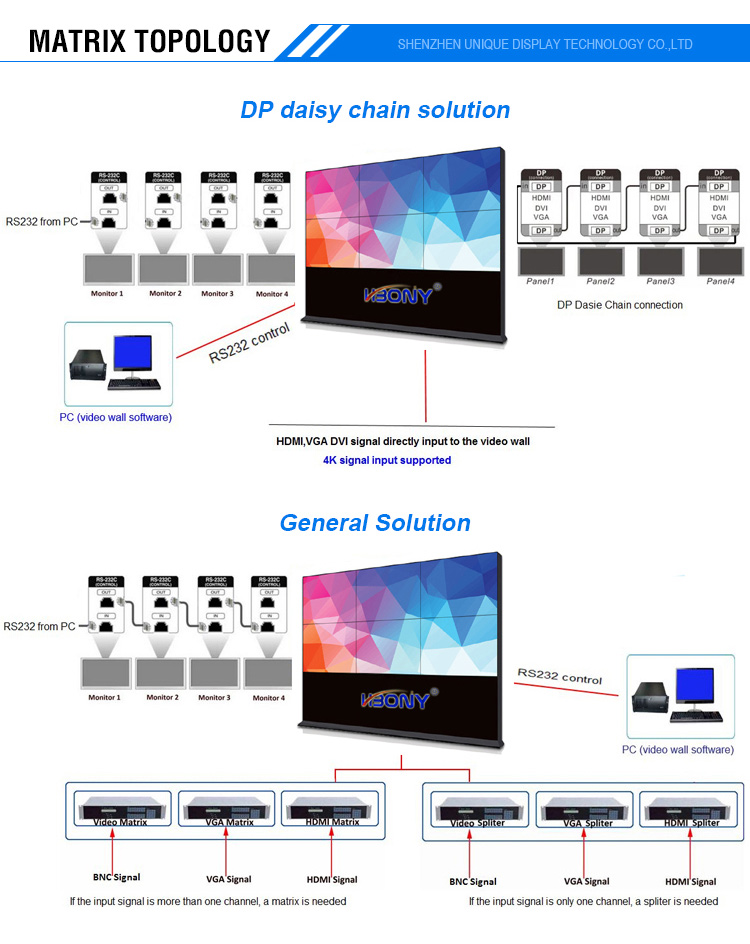

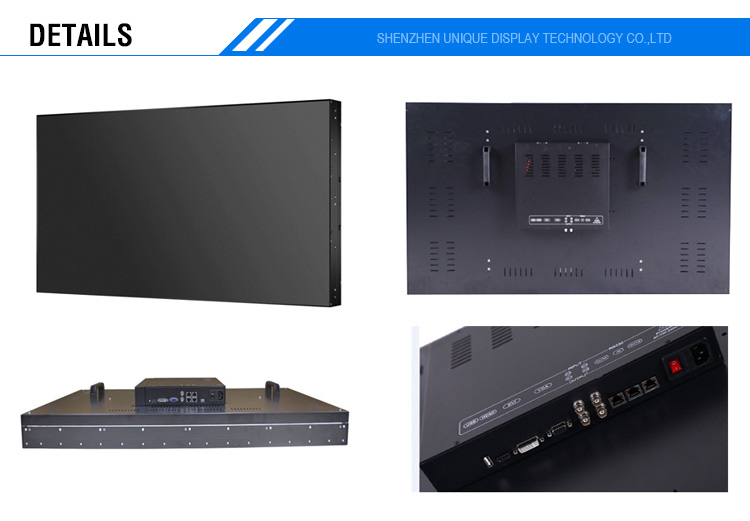

Interfaces (option 1- without 4K input)

Model No.

HBY-PJ4609

HBY-PJ5509

Input

1*DVI,1*HD-MI,1*VGA,2*BNC (PAL/NTSC),1*RS232(RJ45)

Output

2*RS232(RJ45),2*BNC (PAL/NTSC)

Interfaces (option 2- With 4K input)

Model No.

HBY-DP4609

HBY-DP5511

Input

1*DVI,1*HDMI,1* DP (Display port),1*VGA (SVGA / XGA / WXGA),2*RS232(RJ45)

Output

1* DP (Display port),2*RS232(RJ45)

Power

Power Supply

AC100V~240V 50/60Hz

Maximum Power

Consumption

180W

200W

220W

Standby Power

Consumption

<1W

Working Environment

Working

Temperature

0℃~50℃

Working Humidity

10%-90%RH
