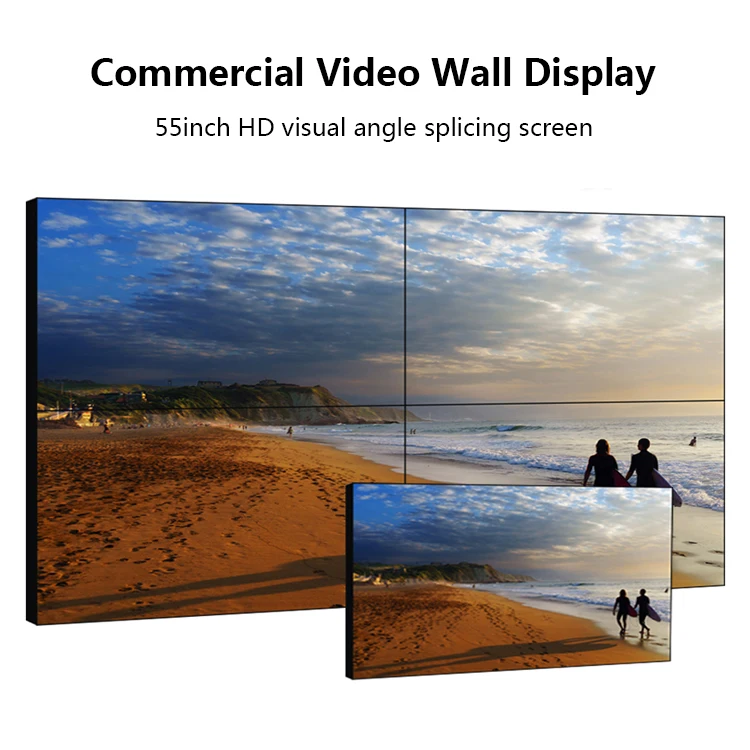

HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display
HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display

HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display

Model NO.
HBY-PJ550
Price:
USD 1000.00-2000.00 / pieces
Delivery:
FOB
Minimum order quantity:
4 pieces
Supply Ability:
3000 pieces / Week
Country of Origin:
Shenzhen
Quantity:

HBY 500nits 1920x1080p 55 inch 3.5mm bezel lcd video wall display

Product Description

 Features

1 Industrial original imported panel,
2 LED backlight,
3 HD screen,
4 Visual angle:178(H)/178(V)
5 Narrow bezel,
6 High brightness,
7 Function:Single screen display,full screen display,Combination display,Image Cruise,Superimposed images,Image Drag Function
8 Digital information display with LCD-DID Industrial HD&High-brightness narrow edge LCD.
9 Built-in splicing module, Support splice function,support Creating one window(PIP) across the screen,roaming service,scaling,PIP Support matrix joint control.
10 Unique DNX motion supplement image processing technology, Dynamic image without motion
11 Trail,Splicing image processing RS-232(RJ-45)loop-circuit input/output.,Input by remote control with wire,mobile receiver head.



Specification

Specification/ModelHBY-PJ550P
Panel size55Inch
Aspect Ratio16:9
High Resolution1920*1080
Pixel Pitch0.63(H)*0.63(V)
Number of Color16.7M
Brightness500cd/m² 700cd/m²
Contrast Ratio4000:1
Responsive Time8ms
Panel LifeAbove 50000 hours
CertificateFCC/CE/ROHS/ISO
Warranty1 year
Visual AngleHorizontal 178/Vertical178
Power SupplyInput:AC110-220V-50/60Hz
Size of Shell Frame(±1mm)Single side one the right and the
left:11mm/single
side on top and bottom:11mm
Panel Display Area(Width)1209.6mm*(Height)680.4mm
Working Humidity10~80%
Working Temp.0~40°C
Input Port2*BNC, 1*VGA, 1*DVI,1*,1*RS232
VGA/DVI Resolution Ratio640*480,800*600,1024*768,1280*1024,
1600*1200,1920*1080
Bezel3.5mm
Output Port2*BNC,2*RS232



                           Video wall Controller(Built-In each Screen)
InputCVBS2*BNC port,support PAL/NTSC all formats
DVI1*DVI port,support SVGA/SGA/WUXGA
VGA1*DSUB 15 port,suppoer SVGH/XGA/WXGA
 1 port, support SVGA/XGA/WUXGA
USBFor upgrade
RS2321 port
OutputLVDSSupport signal or double LVDS output, and WUXGA (1920*1080) display
CVBS2*BNC Port,support PAL/NTSC all formats
RS2322
Engineering softwareMulti-screen control software
PowerPower supplyAC100-240V 50-60Hz
Maximum Power consumption220W
Standby Power consumption<0.5W
CertificatesCCC,CE, FCC&Rohs
TemperatureWorking Temp0°-40°
Working Humidity10%-80%
Operate modeIR control
Menu key
Standard RS232 port(provide free control software)
Working temp0°-70°
Working Humidity5%-95%
AC Voltage power supply100-240V/50-60Hz
Power consumption<220W
Weight3.5kg

1.jpg2.jpg3.jpg3.jpg4.jpg3 (2).jpg

2 (2).jpg000000.png

Products Recommended

 .jpg

Company Information


FAQ

Q1: Are you a factory or trading company?
A1:We are a OEM/ODM direct factory.

Q2: Can I get some samples?

A2:Sample is available,but you need to pay the sample cost and freight.
Q3: How does your factory control quality?
A3: Our factory passed ISO 9001,QC will test each one to make sure 100% ok before delivery
Q4: What is your guarantee and return policy?
A4:Any defective in material or workmanship can be repaired or replaced in warranty period.warranty is not valid if product was altered or incorrect repaired by others.
Q5: When will you make the delivery?
A5:Small quantity 3-7 days,large quantity 7-10days.
Q6: What payment methods your company accept?
A6:We accept T/T,L/C,Western Union,Paypal and MoneyGram,Cash,E-checking
Q7: Any suggestion for delivery?
A7: A:If less than 100KG, by Express or Air freight.if excess 100kg,by sea shipping.
Q8: Do you give any discount ?
A8: We will try our best to approach your target price if large quantity.
Q9: Can you provide us digital solution ?
A9: Yes,our experienced technician can provide you any digital signage solution.

contact us


  • Place of Origin:CN;GUA
  • Brand Name:HBY
  • Model Number:HBY-PJ550
  • Type:TFT
  • Application:Indoor
  • Panel Size:46/47/49/55inch
  • Max Resolution:1920*1080
  • Viewing Angle:178 /178
  • Pixel Pitch:0.63(H)*0.63 (V)
  • Color:16.7M
  • Contrast Ratio:3500:1
  • Brightness:500cd /700cd /m2
  • Response Time:5ms
  • Input Voltage:AC 100~240 V 50/60 HZ
