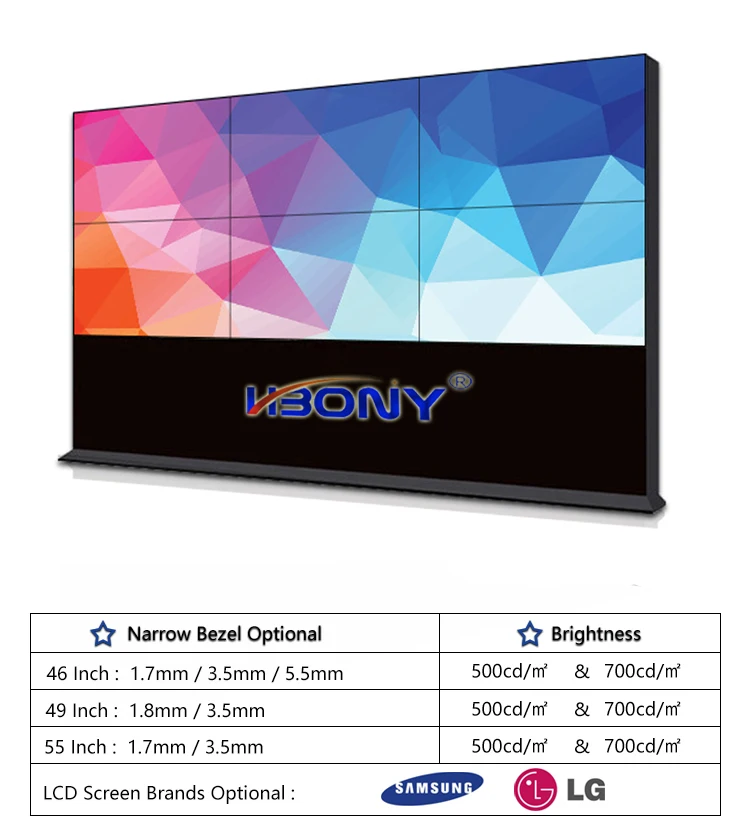

LCD-DID Industrial HD&High-brightness narrow edge LCD.
Narrow Edge Design: Minimum 3.5mm.
High Resolution Ratio: 1920*1080
High-brightness: 500cd/sqm
Super wide visual angle:178(H)/178(V)
Digital information display with LCD-DID Industrial HD&High-brightness narrow edge LCD.
Built-in splicing module, Support splice function,support Creating one window(PIP) across the screen,roaming service,scaling,PIP Support matrix joint control.
Unique DNX motion supplement image processing technology, Dynamic image without motion
trail,Splicing image processing RS-232(RJ-45)loop-circuit input/output.,Input by remote control with wire,mobile receiver head.
| LCD Video Wall | |
| Model No. | HBY-PJ550P |
| Panel Size | 55"DID LCD screen(with Seamless bezel 3.5mm) |
| Backlight Type | D-LED |
| Display Area | 1209.6(H)x680.4(v)mm |
| Aspect Ratio | 16:9 |
| Max Resolution | 1920X1080 |
| Color | 8Bit,16.7M |
| Brightness | 500cd/m2 |
| Contrast | 4500:1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | 8ms |
| Life Span | >60,000 hours |
| Bezel Width | 3.5mm |
| Product Dimension | 1213.5mm(L)*684.3mm(H)*122mm(D) |
| Product Weight | 25KG |

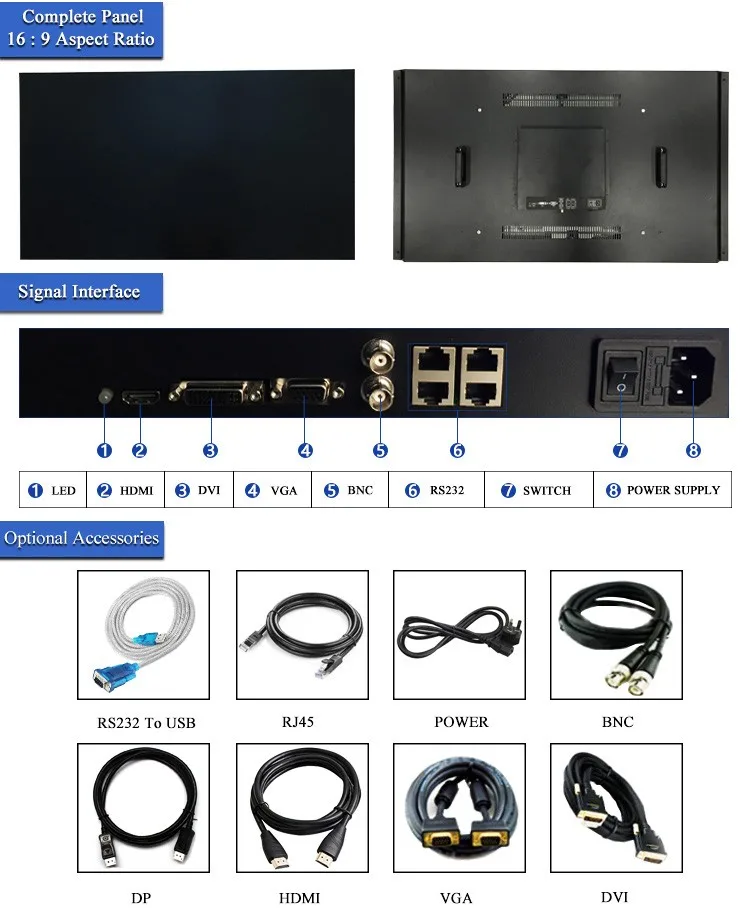

| Interfaces (option 1- without 4K input) | |
| Input | 1*DVI |
| 1*Support HDMI Input | |
| 1*VGA (SVGA / XGA / WXGA) | |
| 2*BNC (PAL/NTSC) | |
| 1*RS232(RJ45) | |
| Output | 2*RS232(RJ45) |
| 2*BNC (PAL/NTSC) | |
| Interfaces (option 2- With 4K input) | |
| Input | 1*DVI |
| 1*Support HDMI Input | |
| 1* DP (Display port) | |
| 1*VGA (SVGA / XGA / WXGA) | |
| 2*RS232(RJ45) | |
| Output | 1* DP (Display port) |
| 2*RS232(RJ45) | |
| Power | |
| Power Supply | AC100V~240V 50/60Hz |
| Maximum Power Consumption | 220W |
| Standby Power Consumption | <1W |
| Working Environment | |
| Working Temperature | 0℃~50℃ |
| Working Humidity | 10%-90%RH |
