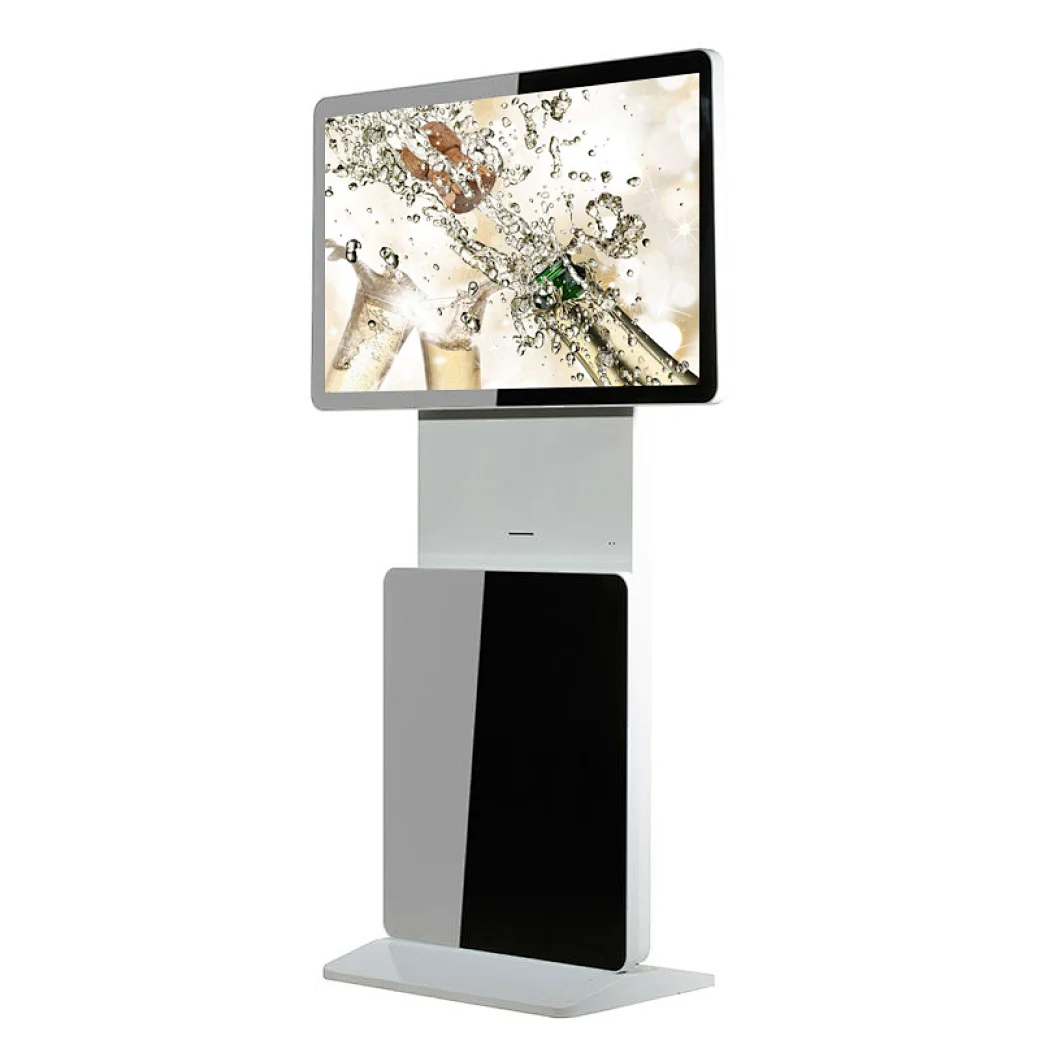

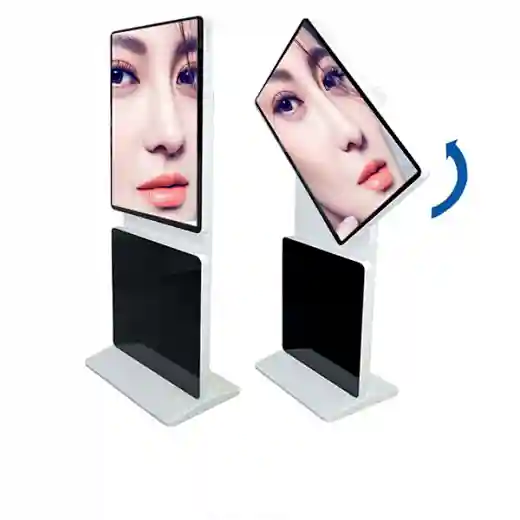

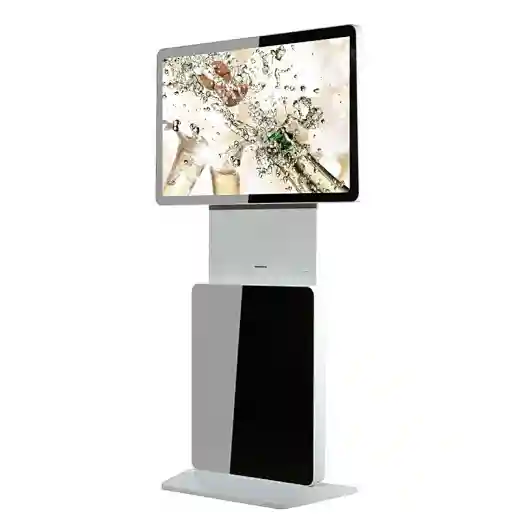

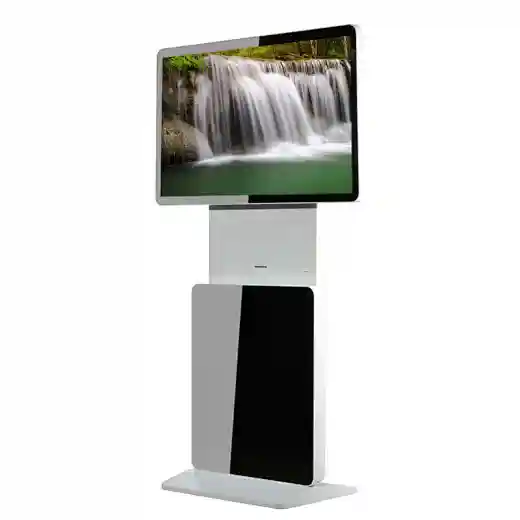

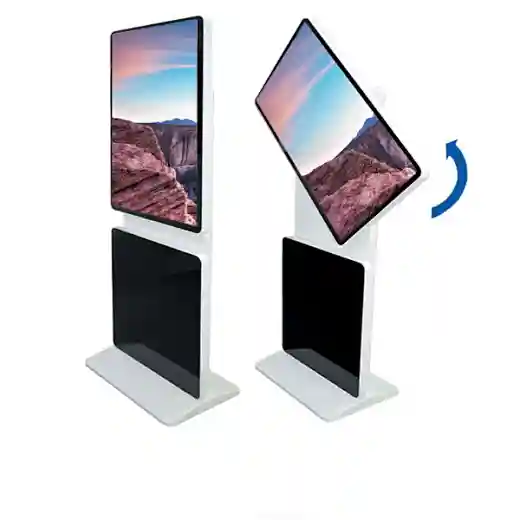

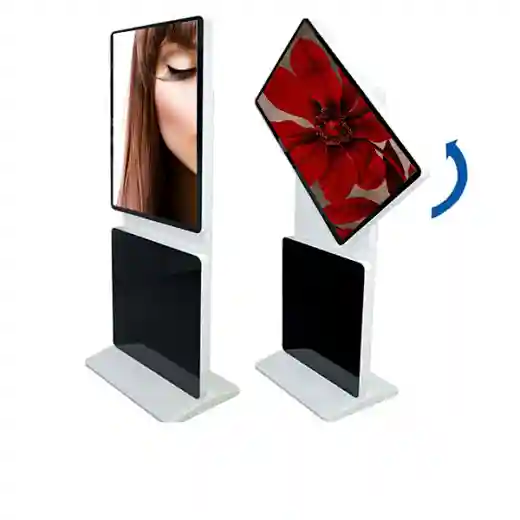

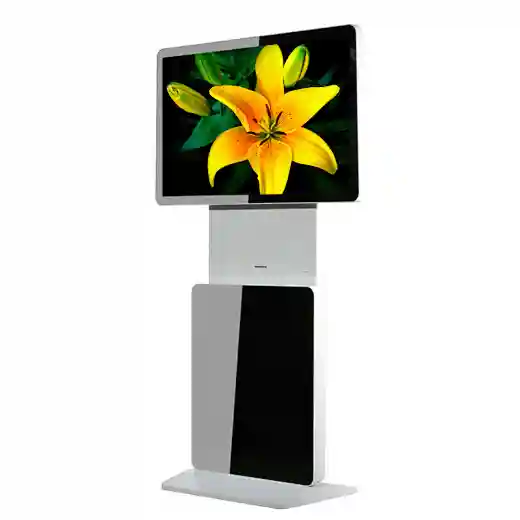

47inch touch screen rotating lcd totem/digital signage kiosk
HBY-V470P
Delivery
FOB
minimum order
1 unit
Supply Ability
3000unit / Week
Country of Origin
ShenZhen,China
Stock Time
Within 5-7 working days after paymentDay
Quantity
USD1000.00 - USD2000.00
/ unit
Product Description
47inch touch screen rotating lcd totem/digital signage kiosk
| Specification | ||||||||||
| Model No. | HBY-V470P | |||||||||
| Panel size | 47″ TFT-LCD | |||||||||
| Display area(mm)/mode | 1047.8*593mm | |||||||||
| Maximum resolution | 1920*1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.5415*0.5415mm | |||||||||
| Brightness (nits) | 300cd/m2 | |||||||||
| Contrast | 3000:1 | |||||||||
| Visual angle | 89/89/89/89 | |||||||||
| Response time | 5ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| RJ45 | Included(Network version only) | |||||||||
| 3G / WIFI Module | Included(Network version only) | |||||||||
| USB | 1 ( USB2.0 interface) | |||||||||
| SD | 1 (Compatible MMC/MS) | |||||||||
| CF | 1(optional) | |||||||||
| L/R audio input | 1 (RCA*2) | |||||||||
| L/R audio output | 1 (RCA*2) | |||||||||
| Speaker | 2×5W(9Ω) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Remote controller | IR Remote Controller | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | AC100~240V 50 /60 HZ | |||||||||
| Maximum power consumption | <=280W | |||||||||
| Standby power consumption | <1W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 20%~85% | |||||||||
| Storage humidity | 10%~90% | |||||||||
| Appearance | ||||||||||
| Color/appearance | White,black,customized | |||||||||
| Body Dimension | 1900(H)*886.78(L)*90(W)mm | |||||||||
| After packing size | 1990mm×1030mm×250mm | |||||||||
| Case | Metal case SPCC | |||||||||
| Installation | Floor-standing | |||||||||
| Gross Weight | 108kg | |||||||||
| Quality Standard | ISO9001,CCC | |||||||||
| Detailed functions | ||||||||||
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |||||||||
| Audio format | Wave/MP3/WMA/AAC | |||||||||
| Image format | JPEG/BMP/TIFF/PNG/GIF | |||||||||
| Image resolution | 480P/720P/1080P | |||||||||
Packaging & Shipping
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 12 months warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation
