Product Description
Floor stand portable lcd screens media player display kiosk totem digital signage
Specification |
Model No. | HBY-V490P |
Panel size | 49″ TFT-LCD |
Display area(mm)/mode | 1073.78Wmm*604Hmm |
Maximum resolution | 1920*1080 |
Display color | 16.7M |
Pixel Pitch(mm) | 0.055926*0.55926mm |
Brightness (nits) | 400cd/m2 |
Contrast | 3500:1 |
Visual angle | 178H/178V |
Response time | 5ms |
Life(hrs) | >50,000(hrs) |
Input and output |
RJ45 | Included(Network version only) |
3G / WIFI Module | Included(Network version only) |
USB | 1 ( USB2.0 interface) |
SD | 1 (Compatible MMC/MS) |
CF | 1(optional) |
L/R audio input | 1 (RCA*2) |
L/R audio output | 1 (RCA*2) |
Speaker | 2×5W(9Ω) |
PC 1 |
CPU | Windows i3/i5/i7 |
RAM | 4G/8G |
Storage | 120G/240G SSD or 500G/1TB HDD |
OS | Win7/8/10 |
PC 2 | |
CPU | RK3188/3288/3368 |
RAM | 1G/2G/4G |
Memory | 8G,max 32G |
Video |
Color system | PAL/NTSC/SECAM |
Remote controller | IR Remote Controller |
OSD display( screen menu display) |
Menu language | Chinese/English( Multiple Language Supported) |
Power |
Power supply | AC100~240V 50 /60 HZ |
Maximum power consumption | <=280W |
Standby power consumption | <1W |
Temperature |
Working temperature | 0°C~50°C |
Storage temperature | -20°C~60°C |
Working humidity | 20%~85% |
Storage humidity | 10%~90% |
Appearance |
Color/appearance | White,black,customized |
Body Dimension | 1880(H)*740(W)*60(D)mm |
Packing size | 1950mm×15mm×870mm |
Case | Metal case SPCC |
Installation | Floor-standing |
Gross Weight | 85kg |
Quality Standard | ISO9001,CCC,FCC,CE,ROHS |
Detailed functions |
Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
Audio format | Wave/MP3/WMA/AAC |
Image format | JPEG/BMP/TIFF/PNG/GIF |
Image resolution | 480P/720P/1080P |


Company Information

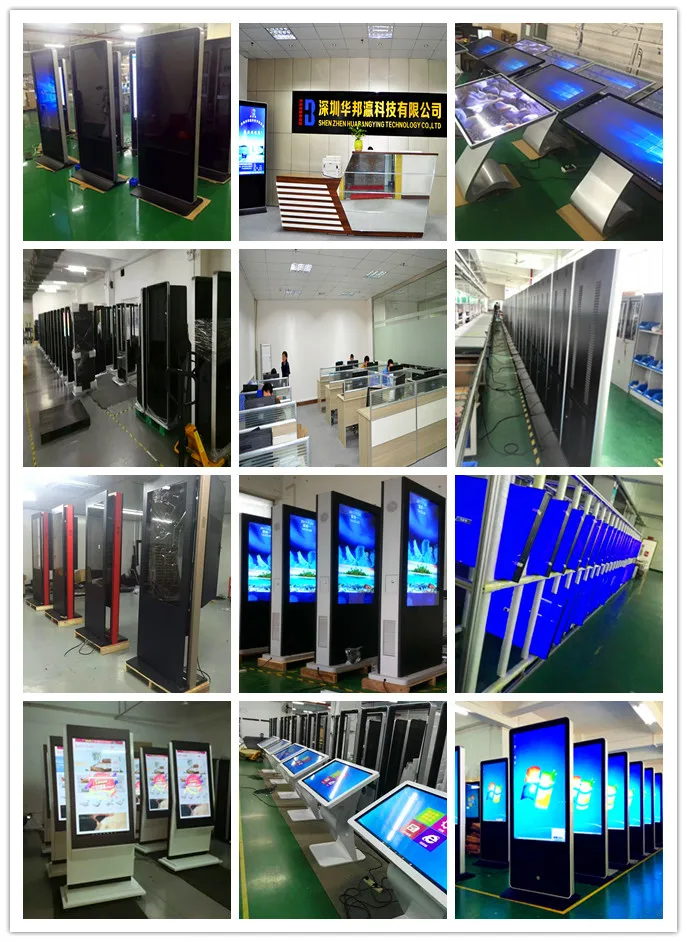

Shenzhen Unique Display Technology Co,Ltd was estalished in 2008,the product range is LCD video wall,touch all in one kiosk,LCD advertising player,product passed CE,ROHS,FCC certifcates,factory passed ISO9001/8001.
Products are well exported to USA,Germany,Russia,Canada,Peru,Kuwait,Bangladesh,Mexico,Japan,Sweden,
Sri Lanka,Spain,Italy,England,Swizerland,Saudi Arab,Signapore ect.Company get 3A credit and service certificates.
Unique Display's purpose: Quality first, customer highest, service are first grade,welcome to cooperate with us,let's get win-win!
