| Specifications | ||||||||||

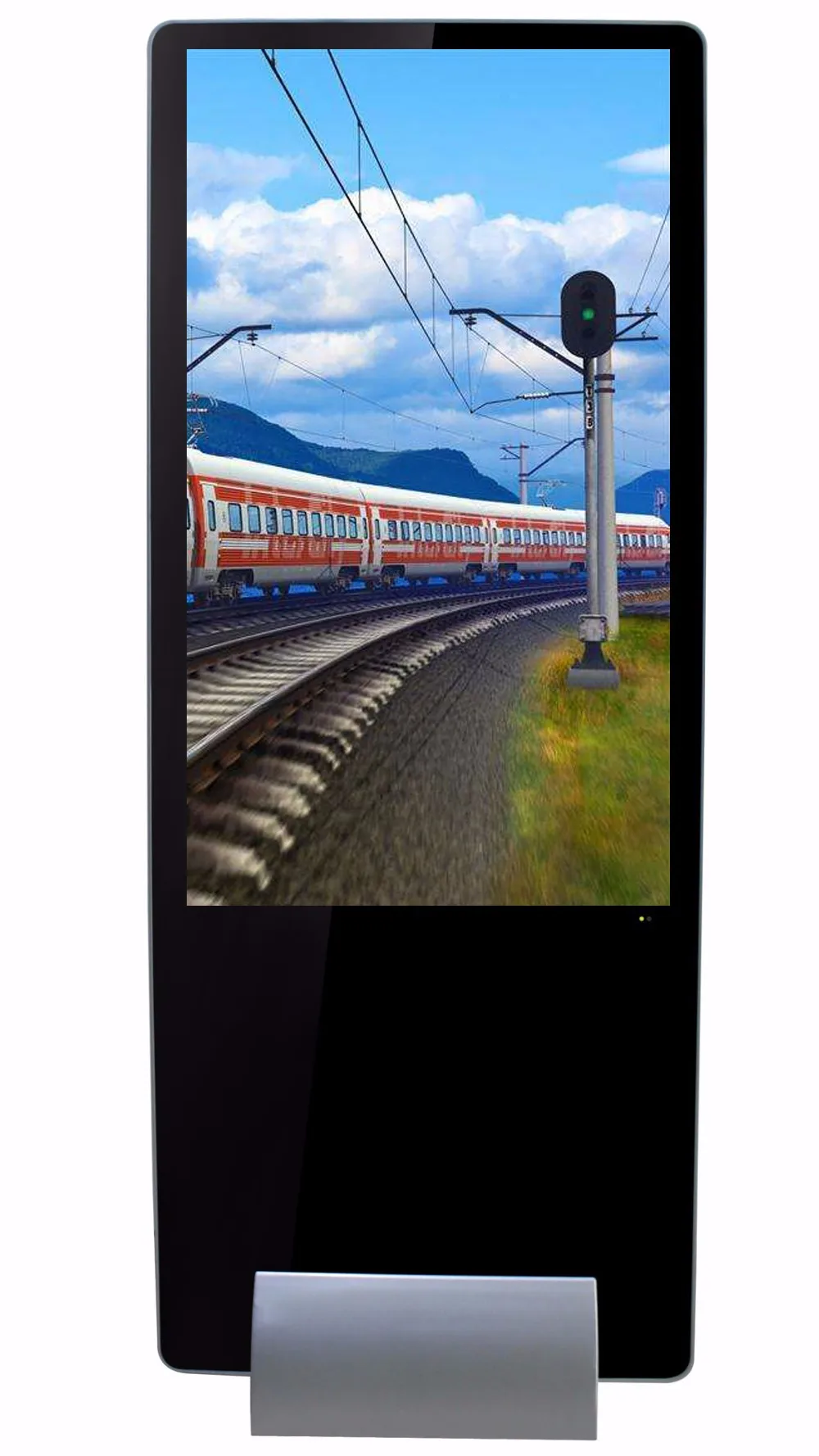

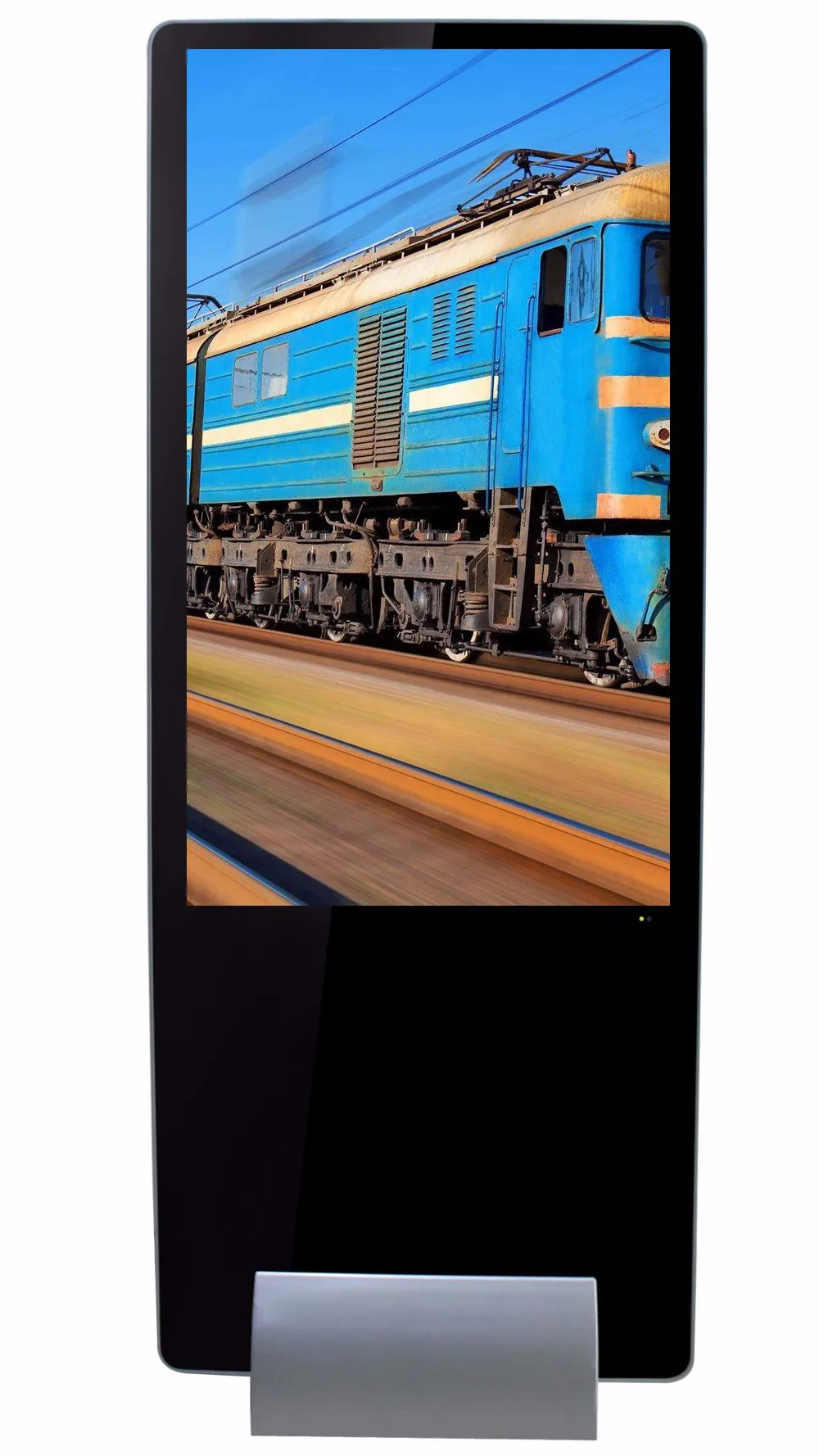

| Model No. | HBY-V420 Touch Screen Digital Signage | |||||||||
| Panel size | 42"TFT-LCD | |||||||||
| Display area(mm)/mode | 930.2(W)×523.0(H) 16:9 | |||||||||
| Maximum resolution | 1920×1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.4845(H)×0.4845(V) | |||||||||
| Brightness (nits) | 600 | |||||||||
| Contrast | 4000:1 | |||||||||
| Visual angle | 89/89/89/89 | |||||||||
| Response time | 6ms | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | 60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 3 (BNC×3) | |||||||||
| YPbPr input | 1 (BNC×3) | |||||||||
| S-video | 2 (BNCX2) | |||||||||
| VGA | 1 | |||||||||
| 1 | ||||||||||
| DVI | 1 | |||||||||
| Composite video output | 2 (BNC×2) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible /DVI input | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | 180W | |||||||||
| Standby power consumption | 1W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0℃~40℃ | |||||||||
| Storage temperature | -20℃~60℃ | |||||||||
| Working humidity | 10%~90% | |||||||||
| Storage humidity | 10%~90% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 996.6×596.0×116.2mm | |||||||||
| Panel color/appearance | White,black,customized | |||||||||
| Case Material | Metal | |||||||||
| Net weight | 37kg | |||||||||
| Installation | Wall-mounted | |||||||||
Functions
Detailed functions: |
Video format: MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
Audio format: Wave/MP3/WMA |
Image format:JPEG/BMP |
Image resolution:480P/720P/1080P |
Play mode:Power on, single card auto loop play; classified files auto loop play; multi cards auto loop display etc |
Time:year/month/day/week/h/m/s, in the top right corner (open and close optional) |
Timing open & close:Per day 5 times, 7 days a week, free time |
Timing play:7 days a week, free set the play program everyday |
Alarm clock:Set 5 alarms one day, once ring the alarm, play the specified program |
OTG:Support copy, delete, remove, rename, build new file among different cards |
Running subtitle:Can set the play location, word size, color and back-color |
Log files:Record the play time (concise to second), the play contents |
Memory function:Power off, memory the time of the play; power on, play from the time, not from beginning |
Key and lock function:Use the remote controller before input the keyword |
Sound volume:Can set the volume of sound in the different time |
Storage card lock:Have a anti-theft lock in the case, equip 2 sets key |
Other function:Customized |
Upgrade software:Just put the upgrade file in the USB slot |
