Product Overviews
SPECIFICATION & DETAIL |

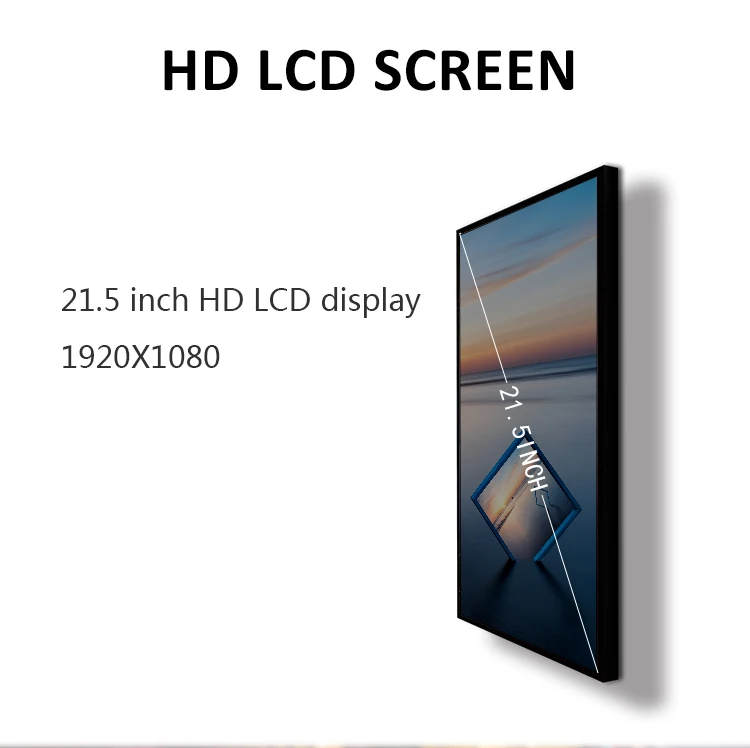

LCD Size | 21.5inch IPS | Material | ABS material injection process |
Resolution | 1920*1080 | Standard Color | White (other color based on the 500 pcs MOQ) |
Display Ratio | 16:9 | Size | 366mm*125mm*1005mm |
Brightness (nits) | 300cd/m2 | Working Temperature | -5℃~60℃ | |
Contrast | 1400:1 | Storage Temperature | -20℃~80℃ | |
Display area | 476.64(H) × 268.11(V) mm | Speaker | 1x 5W speaker | |
View Angle | 178/178/178/178 | Power consumption | 35 W | |
Response Time | 5s | Input | AC/12V100-240V | |
Life (hrs) | 50000 | | |
Operate System | Android 6.0 | Dispensing life | 500000 times | |
CPU | A83T (RK3288 optional) | Bottle Volume | 3000 ml | |
RAM | 1GB | Dispense Volume | Number of the dispensing times can be flexible to be 1, 2, 3 and 4 | |
ROM | 8GB | Pump | Standard pump for Liquid soap, Gel or Foam | |
Touch Screen | Optional | Certificates | CE ,FCC & RoHS |
Care and Maintainance:
1. During the installation and use of the product, all electrical safety regulations must be strictly observed.
2. Please use the power adapter provided by the regular manufacturer.
For specific requirements of the power adapter, see the product parameter table.
3. When installing on the gate, please make sure that the product is installed firmly.
4. If the product does not work properly, please contact the after-sales service personnel. Do not disassemble or modify the product in any way. (The company does not assume any responsibility for problems caused by unauthorized modification or repair.
5. Do not immerse the product in water. When the product is installed outdoors, try to use it with the rain cover provided by our company.
6. Please understand that you are responsible for properly configuring all passwords and other related product security settings, and keeping your user name and password properly.
7. If the equipment does not work properly, please do not disassemble it for repair, otherwise it will affect the equipment warranty.
8. Avoid extreme or extreme environments such as extreme high temperature (or low temperature), high humidity, vibration, radiation, and chemical corrsion during installation and use.
Company Information
Shenzhen Unique Display Technology Co.,Ltd located in Shenzhen City,Guangdong Province covering 5,000 square meters which is one of leading manufacturer specialized in LCD Video Wall, indoor digital signage and touch screen all in one about 11 years experience! Our products have passed CE/ROHS/FCC/CCC /PSE/CB certificates, and factory has got ISO9001/ISO14001/SGS/OHSAS18001 certification. Customers are growing all over the world such as North America,South America,South Africa,North Africa,Southeast Asia, Euro etc.
The brand"HBONY"of Unique Display aims to provide every customer reliable quality and excellent after-sale service. Win-win and long term cooperation is HBONY's eternal goal!
